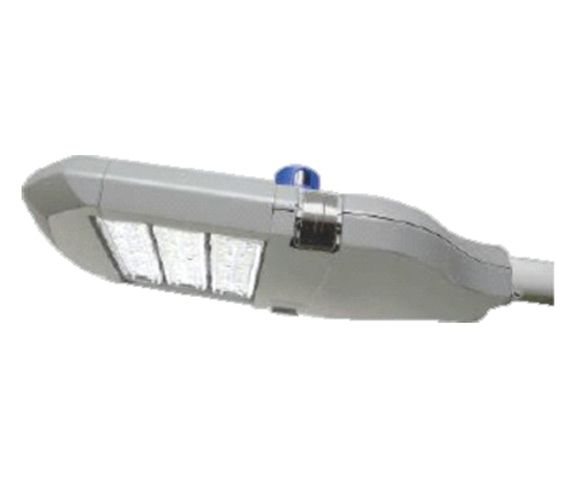

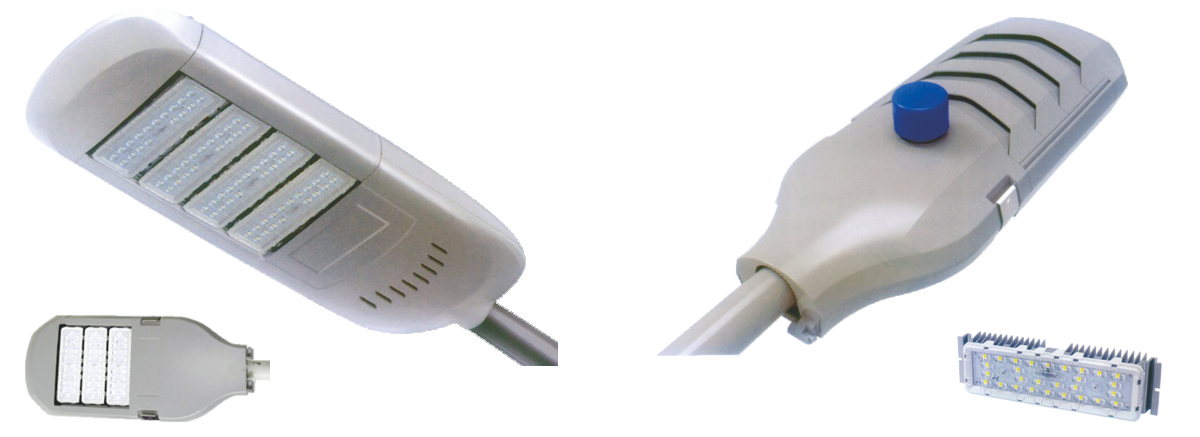

RHT11 Modular LED street light

RHT11 Modular LED street light

Main Function：
Item: RHT11 Series.
RHT11 LED Modular series Aluminum body Lighting Fixture.

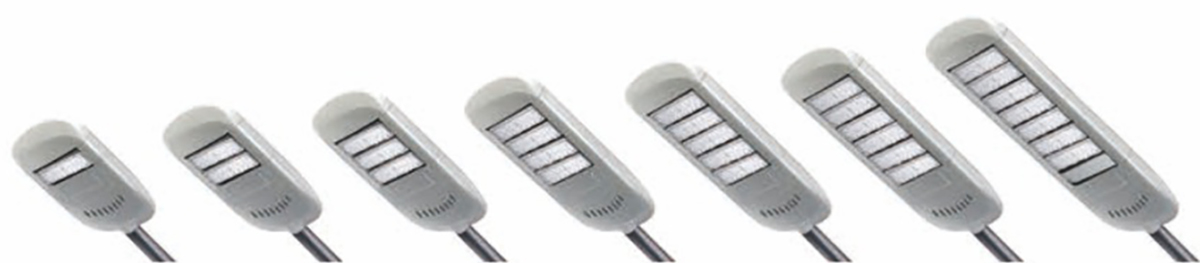

LED Power can be in 1. 2. 3....10 modulars.
One Modular LED power can be in 40w, 60w, 80w, 100w..
Material: Die-casting aluminum body, LED modulars.
Operating Voltage: AC 100-240V , 50/60Hz
LED Luminous Efficiency: 100-160Lm / W
Power Factor: >0.90;
Color Temperature: 2700K _ 6500K
IP Rating: IP65; IK08.
Pole holder size: 60mm
Body Color: Black / Gray， 5-Year Warranty
we can supply in SKD spare parts to you.
OEM are welcome


Products details

Feature:
Die-casting  Aluminum housing, Powder coated painting body surface.

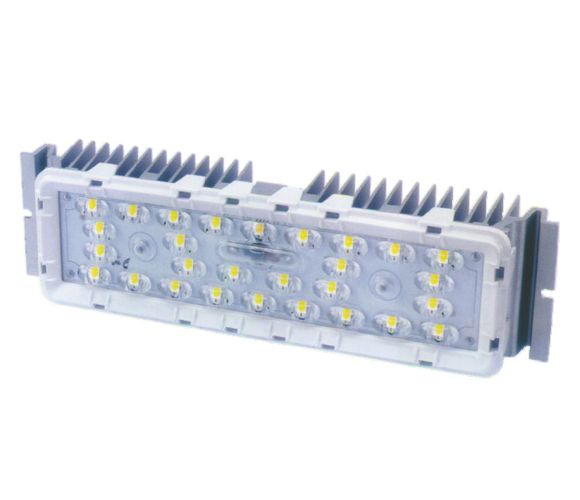

SMD LED Modulars,chinese power driver,  IK09, silicon gasket,
IP66 waterproof. Stainless steel cliper and screws. 5 year warranty
Housing parts and SKD parts can supply.
New Design for market, OEM housing is available.

Application：

Technical support:
Email information to us the Project/Bidding Length,Width, Height and Usage.

our engineer to respond the DIALUX simulations for Lights quantity calculation and effects.
IES files are available upon request.
For example of Cross installation effect o both sides of the Road：
Thermal Management:
Structure is optimized by advanced FEA technology, Achieving longer lifespan as best cost efficiency.
OEM tooling Design :
       we have 20 year OEM Tooling , CNC design, High pressure die-casting aluminum housing.
       we have 15 Sets high pressure die casiting injection machines from 280 Ton to 1350 Ton.
       when get your 3D drawing we can quote price of tooling mould and injection aluminum body costs soon .
